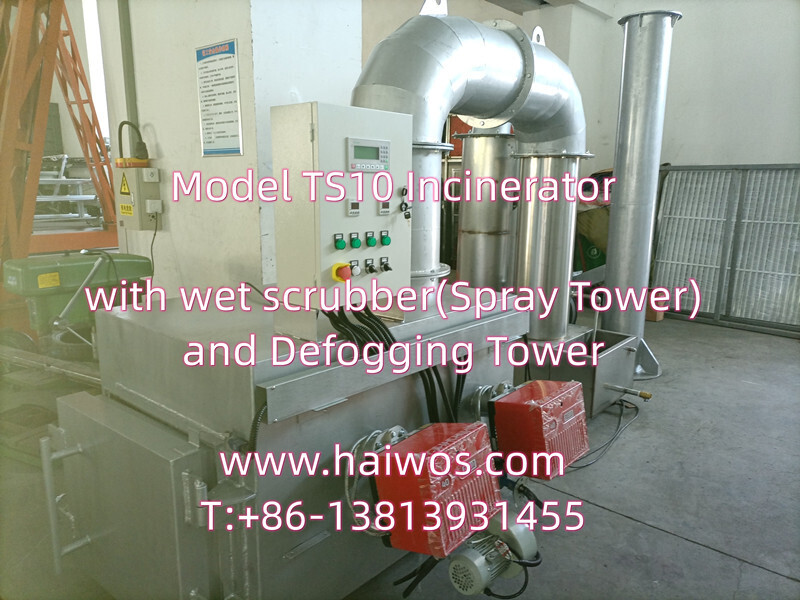

Model TS10 Incinerator with wet scrubber (Spray Tower) and Defogging Tower
Model TS10 Incinerator with wet scrubber (Spray Tower) and Defogging Tower Incinerator Items/ModelHICLOVER TS10(PLC) Burn Rate (Average)10-20 kg/hour Feed Capacity(Average)20kg/feeding Control ModePLC Automatic Primary Combustion Chamber100L Internal Dimensions50x50x40cm Secondary Chamber50L Smoke Filter ChamberYes Feed ModeManual Voltage220V Power3.0Kw Burner TypeItaly Brand Oil Consumption (kg/hour)6 N.Gas Consumption (m3n/hour)*** Temperature MonitorYes Temperature ThermometerCorundum Probe Tube, 1400℃Rate. Temperature ProtectionYes Automatic CoolingYes Automatic False AlarmYes System Testing ModelYes Time SettingYes Progress Display BarLCD Display Oil Tank200L Oil Tank StandYes Liquid level DisplayYes Feeding Door30x30cm Chimney3Meter Chimney TypeStainless Steel 304 1st. Chamber Temperature800℃–1000℃ 2nd. Chamber Temperature1000℃-1300℃ Residency Time2.0 Sec. Gross Weight1800kg External Dimensions140x90x120cm(Incinerator Mainbody) 1st. Chamber Composition Hot FaceThickness: ≥115 mm 55% of Al203 1750°C Grade 2nd. Chamber Composition Hot FaceThickness: ≥115 mm 75% of Al203 1790°C Grade Chamber Cold Face MaterialHigh Rate Refractory Ceramic Fiber Other Parts Hot Face RefractoryHeavy Duty with steel fiber Burner operationAutomatic On/Off Dry ScrubberNone Wet ScrubberIncluding Top Loading DoorOptional Paint for outside face250°C Grade Sealing MaterialRefractory Ceramic Fiber Upgrade Containerized Mobile TypeOptional CE CertificateCE(2006/42/EC,2014/30/EU ISO CertificateISO9001:2015 High-tech Enterprise CertificateYes
